Dummy CPU (DC-A-SP7)
Cable-free CPU emulation for AMD SP7 server motherboard testing, with full signal coverage and zero auxiliary hardware.
Core Benefits
100%
Interface Coverage
5W
Power Draw
3.3V
Supply Voltage
90 Sec
Faster Power-On
20%
Efficiency Gain
Product Overview
The Dummy CPU (DC-A-SP7) is a purpose-built module that physically replaces an AMD SP7 CPU during motherboard testing. It matches the real CPU’s footprint exactly, so it drops into existing sockets and fixtures without modification, while bypassing the BMC power-on sequence entirely. Its built-in self-check verifies crimping status, supply voltage, and crystal oscillator health before testing even begins, and it plugs directly into Telebyte’s cable-free K1149 ecosystem for full-speed differential signal testing.
Identical CPU Footprint
No BMC Power-On Required
Reliability Self-Check
Cable-Free Design
Minimal Fixture Probes
K1149 Ecosystem Ready
Full Specifications
Category
Item
Description
General
Product Compatibility
All AMD SP7 server motherboards
General
Power Consumption
5W
General
Power Supply Voltage
3.3V
General
Overall Size
76.5mm x 80mm
Self-Test
Motherboard Power-Up
Bypasses BMC power-on
Self-Test
Reliability Self-Check
Crimping, voltage, oscillator
Engineering
Cable-Free Design
K1149 cable-free compatible
Engineering
Minimal Probe Points
K1149 high-speed compatible
High-Speed
Differential Signals
Not Required
General
Product Compatibility
All AMD SP7 server motherboards
General
Power Consumption
5W
General
Power Supply Voltage
3.3V
General
Overall Size
76.5mm x 80mm
Self-Test
Motherboard Power-Up
Bypasses BMC power-on
Self-Test
Reliability Self-Check
Crimping, voltage, oscillator
Engineering
Cable-Free Design
K1149 cable-free compatible
Engineering
Minimal Probe Points
No fixture probes required
High-Speed
Differential Signals
K1149 high-speed compatible
100% Signal Coverage Across Every Interface
Every interface on the AMD SP7 platform is fully validated, with no partial coverage gaps.
DDR-DIMM
PCIe
USB
I2C
Power Supply (12-bit ADC)
Crystal Oscillator
BIOS ID
eSPI
Serial Port
PECI
Clock Signal
Traditional vs. Dummy CPU Testing
Traditional Setup
Cable-based wiring for standard cards
Manual fixture verification
Requires BMC, PDB, FAN boards
Complex needle-plate fixtures
Standard power-on sequence
No auxiliary components required in the test environment
Dummy CPU + Traditional Setup
Cable-free operation
Automatic reliability self-test
No auxiliary hardware needed
Simplified fixture design
No BSDL file required
Boosted test efficiency, faster power-on
For SLIM/MICO connectors without integrated power definition, an external power/ground supply to the dummy card is required to maintain signal integrity during testing.

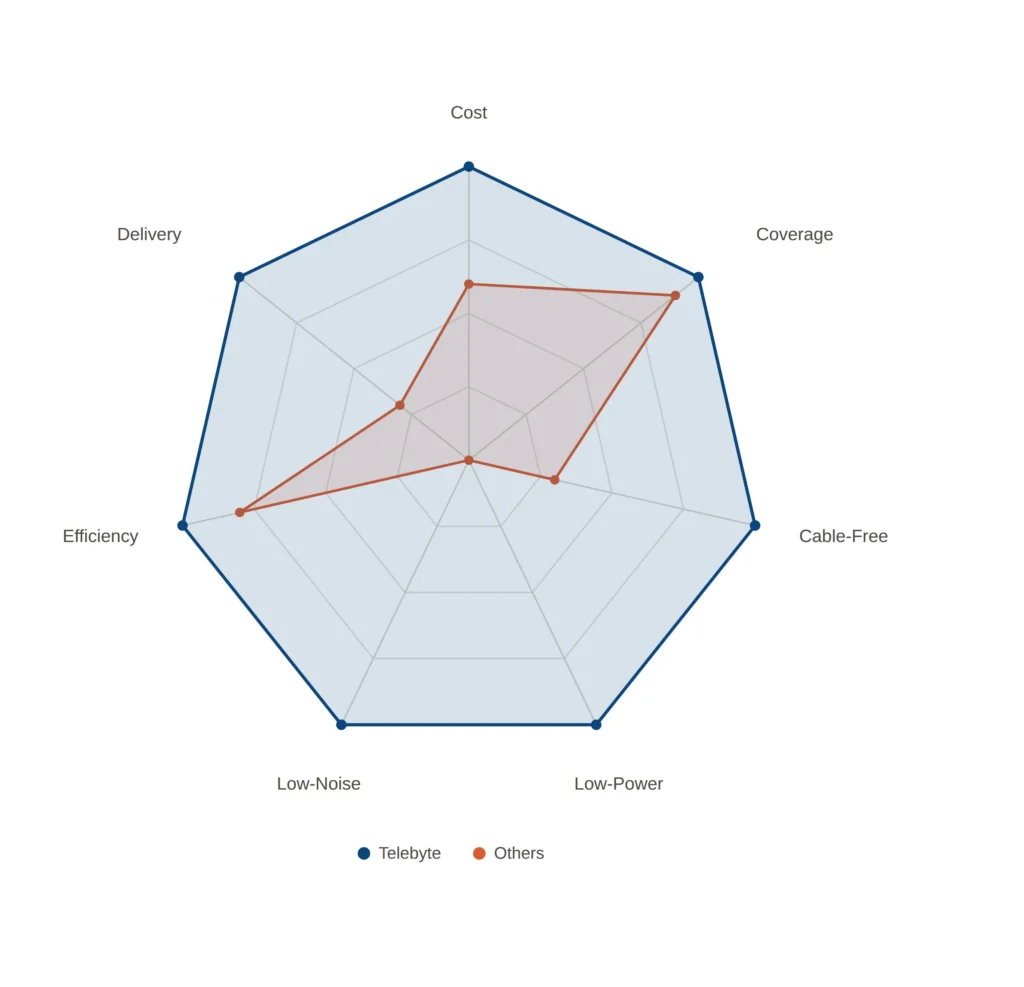

Telebyte vs. Others
Each dimension is scored on a comparable basis, with the optimal value set at 100.
•
No CPU power-on initialization needed
•
No auxiliary components required in the test environment
•
Supports added interface coverage for power-on companion parts
•
Detects peripheral signal defects other fixtures miss
•
Unaffected by CPU supply availability across the product lifecycle
•
Fixture delivery lead time is controllable, independent of BSDL accuracy
No CPU power-on initialization needed
No auxiliary components required in the test environment
Supports added interface coverage for power-on companion parts
Detects peripheral signal defects other fixtures miss
Unaffected by CPU supply availability across the product lifecycle
Fixture delivery lead time is controllable, independent of BSDL accuracy

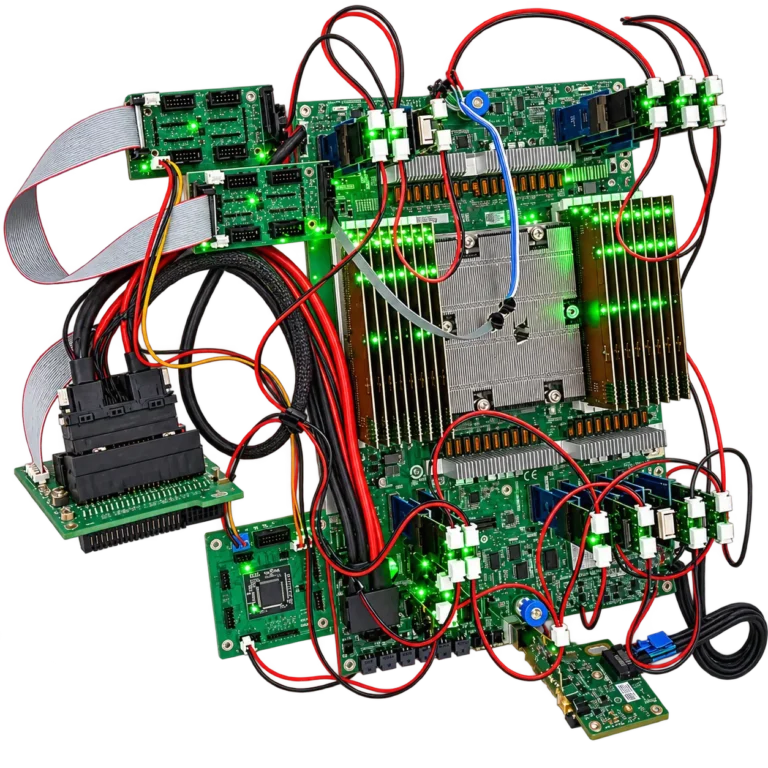

Success Story
Dummy CPU Solution
Catches fixture defects legacy testing misses.
The Dummy CPU monitors peripheral ground and power signals on the CPU dummy itself, catching fixture pressing-fit defects that standard test setups miss entirely. Its dedicated boundary-scan chain also cuts the number of test probe pins required versus legacy BSI fixtures, so fixtures stay simpler to build and maintain over the product’s full manufacturing lifecycle.
Fewer
Test probe pins vs.
legacy fixtures
Built-In
Pressing-fit defect
diagnosis
100%
Interface coverage
Where It’s Used
Each dimension is scored on a comparable basis, with the optimal value set at 100.
AMD SP7 Server
Motherboards
K1149 Cable-Free
Test Fixtures
